An Integrated Optical Transport Solution for Multi-Generational Backhaul/Fronthaul Networks


Driven by the soaring growth in mobile demand, the cellular technology is undergoing a process of continuous transition from one technological generation to another. There is a growing demand for new services, for more bandwidth and a need to support more capable smartphones and end devices.

Evolution of mobile networks technologies - Typical timetables since the incubation of each technological generation up to its respective maturity

Tera-Pass offers a unique combination of ASIC and IP Cores product families that provide building blocks for the design of optical systems intended to simultaneously support multiple generations of cellular technologies. Drawing on these building blocks, OEMs can design optical systems that allow the telecom operators to optimize the utilization of their optical RAN (Radio Access Networks).

Tera-Pass’ unique combination of OTN ASIC and IP Cores products for backhaul/fronthaul applications

In order to distribute higher end-user bandwidths over the electro-magnetic spectrum, operators need to reduce the service area of each cell.

Consequently, the number of cells required for cellular network coverage increases from one cellular technological generation to another.

There is a corresponding need to change the design of the optical transport networks required for cellular Radio Access Networks (RAN). This change needs to be introduced in a cost-effective way.

One of the challenges facing telecommunications operators worldwide is how to build a cost-effective optical network for their RAN.

This challenge is exacerbated by the parallel growth of multiple generations of cellular technologies. The introduction of a new technology (e.g-5G) does not preclude the growth of previous generations (e.g-4G). Furthermore, each generation of cellular technology requires different capabilities to provide connectivity between outdoor antennas and their associated radio equipment (RRH, Remote Radio Heads) and their subtending controllers and central offices.

As an example, 3G networks depend on the transport of Fast Ethernet (FE, 100M) and Gigabit Ethernet (1GE, 1G) signals, 4G networks depend predominantly on the transport of CPRI (Common Protocol Radio Interface) signals of multiple bitrates, and upcoming 5G networks are expected to commence to be deployed drawing on Ten Gigabit Ethernet (10GE, 10G) and Twenty Five Gigabit Ethernet (25GE, 25G) signals.

The Mobile Transport Network (Backhaul/Fronthaul) Evolution.

A basic characteristic of the evolution of cellular networks’ technological generations is the continuous growth in higher bitrate services at higher qualities of service.

Qualcomm explains the transitions between cellular technologies generations

3G Networks

3G networks, deployed in earnest from 2005 onwards, are designed with centralized base station controllers, each overseeing a certain number of nearby cellular antennas. The cell sites are connected to the centralized control sites with Ethernet signals. These signals operate at bitrates of 100M (FE signals) and 1G (1GE signals).

3G RAN Concept

3G technology supported the introduction of Smartphones as a new, revolutionary product category, with end-user data rates of typically up to 2Mbps.

However, the pace of proliferation of Smartphones and their bandwidth hungry applications soon required a cellular technology capable of delivering higher end-user bitrates.


The next technological enhancement following 3G was the introduction of 4G, or as the prevailing 4G technology is known, LTE (Long Term Evolution).

LTE networks were designed to provide an order of magnitude increase in end-user data rates – all the way up to 20Mbps per end-user device.

4G networks commenced to be deployed from 2010 and onwards.

The step-fold increase in bandwidth and the need to reduce electrical power consumption brought about also a change as compared with 3G Remote Radio Units (RRUs). RRHs, or Remote Radio Heads, were introduced. In an RRH, as compared with RRUs, the radio unit climbs atop the antenna tower, thus eliminating the power loss associated with the 3G radio equipment coaxial cables.

In addition, a new functional split in between the Radio Equipment Controller (REC), or Base-Band Unit (BBU), and the Radio Equipment, or RE, further allowed to simplify and minimize the functionality, size and cost of 4G radio units.

Transition from coax based 3G RRUs to low cost fiber based 4G RRHs

All functions above the physical layer, and most of the functions of the physical layer itself, are performed by the REC, that is located at the centralized sites (“BBU, BaseBand Units).

The REC generates the radio signal, samples it, and sends the resulting data to the RE (Radio Equipment, located adjacent to the 4G antennas). The RE reconstructs the received waveform and transmits it over the air.

The main benefit of this functional split is that there is almost no need for digital processing functions RRHs, simplifying and making the RRHs small and inexpensive.

In addition, the centralization of all the radio signal processing functions at the BBU also paves the way for the introduction of cooperative techniques such as CoMP (Cooperative Multi-Point), that require the advanced processing of the radio signals of several RRHs simultaneously.

The signals being transported in between the RRHs and their BBU controllers are predominantly CPRI signals. CPRI signals are all multiples of a basic rate – 614.4Mbps, or CPRI-1. Typical CPRI signals being deployed in 4G networks operate at rates of CPRI-3 (2457.6 Mbps), CPRI-5 (4915.2 Mbps) and CPRI-7 (9830.4 Mbps).

However, the transport of CPRI signals from the RRHs to their BBUs brought about a new challenge.

The most stringent performance parameters for CPRI signals transmission are minimal round-trip latency/delay and extremely low Bit Error Rate (BER). CPRI signals cannot withstand more than a 5 µs round-trip latency contribution due to the Transport functionality. The maximum allowed BER tolerated by CPRI signals is of 10E-12. In addition, the frequency deviation allowed to the CPRI signal clock as compared with its BBU clock must not be larger than 0.002 ppm (2 ppb, or parts per billion).

C-RAN (Centralized RAN)

Connecting RRHs to their BaseBand Units (BBUs) in an efficient way over fiber optics while meeting the performance parameters of CPRI signals became a challenge.

The MFH (Mobile FrontHaul) concept


Centralized BBUs provide efficient management of distributed RRHs The CPRI signals transported from the RRHs to the BBU need to meet stringent performance parameters



The demand for ever higher bitrates, as well as the continuous evolution in network services, such as Autonomous Cars, Internet of Things (IoT) and the continued growth in demand for high-quality video services, eventually caught up with 4G networks as well.

CPRI signals as the bearers for data transmission in between RRH units and their BBU controllers is reaching its practical performance limit. The amount of bandwidth required by newer services is overwhelming LTE capabilities.

A new cellular technological generation was introduced – 5G.

5G cellular radio operating frequencies require 100 MHz channels (as compared with LTE’s 20 MHz), along with massive MIMO technologies. This combination will require the 5G Mobile FrontHaul networks (MFH) to transport several tens or even hundreds of Gbps of traffic over an optical infrastructure.

By way of example, an 8x8 MIMO antenna covering 4 sectors would generate 32 Antenna Carriers (AxC) signals, translating into about 32 Gbps for 20MHz radio channels. For 100MHz channels radio channels, five times as much bandwidth would be required.

The main characteristics of 5G networks will be their yet again increased end-user bandwidth performance (up to 1Gbps) and extremely low latency.

In order to address the challenges associated with the transport of these very high bandwidths, the basic RE/REC functional split of C-RAN is being re-examined. Examples include the decoupling of fronthaul bandwidth and antenna number by moving antenna related operations to the RE or enabling traffic dependent bandwidth adaptation by effectively coupling fronthaul bandwidth with the actual traffic served in the cell. The latter relies on the fact that many cell processing functions do not depend on the number of users.

5G Networks introduce a new RRH to BBU Ethernet based interface (NGFI, Next Generation Fronthaul Interface)


Multiplicity of Signal Bitrates and Protocols in the RAN

A key characteristic of cellular networks is the coexistence and growth, over prolonged period of times, of multiple cellular technological generations.

3G networks typically require Ethernet connectivity in between base stations and central offices with signals such as Fast Ethernet (FE, 100M), or 1GE (Giga-Bit Ethernet, 1 G). On the other hand, 4G cellular networks require connectivity in between RRH units and centralized BBU pools transporting a variety of CPRI signals of multiple rates that would typically be CPRI-3 (2.5G) signals, CPRI-5 (5G) signals and CPRI-7 (9.8G) signals. The CPRI signal bitrate is directly associated with the data bandwidth that an RRH can make available to its served end users.

5G networks are designed for end-user bitrates of up to 1Gbps.

Initial deployments of 5G networks will require the transport of 10GE and 25GE (10G and 25G Ethernet signals). In addition, due to the reduced cell sites coverage area of 5G antennas, it is expected that the fiber infrastructure required to support 5G RAN will rapidly stress the availability of the optical infrastructure – either fiber or colors/λs on WDM systems.

Tera-Pass introduces a unique portfolio of Apodis ASICs and Orion IP Cores OTN Processors that can assist optical systems vendors to address the challenges of designing optical systems capable of simultaneously supporting multiple RAN signals bitrates and protocols.



The Apodis product family of OTN processors offers unique capabilities for the transport of CRPI signals over OTN and meet the 2ppm jitter requirement. Apodis processors offer simultaneous support of CPRI, Ethernet and SDH Client-Side signals.

Apodis OTN Processors Product Family for RAN applications 3 Muxponders and 2 Transponders supporting varying capacities and feature sets


Apodis IPL4002M OTN Processor Block Diagram 16 multi-protocol and multi-rate Client-Side ports to 4 Line-Side OTU2/OTU1 ports

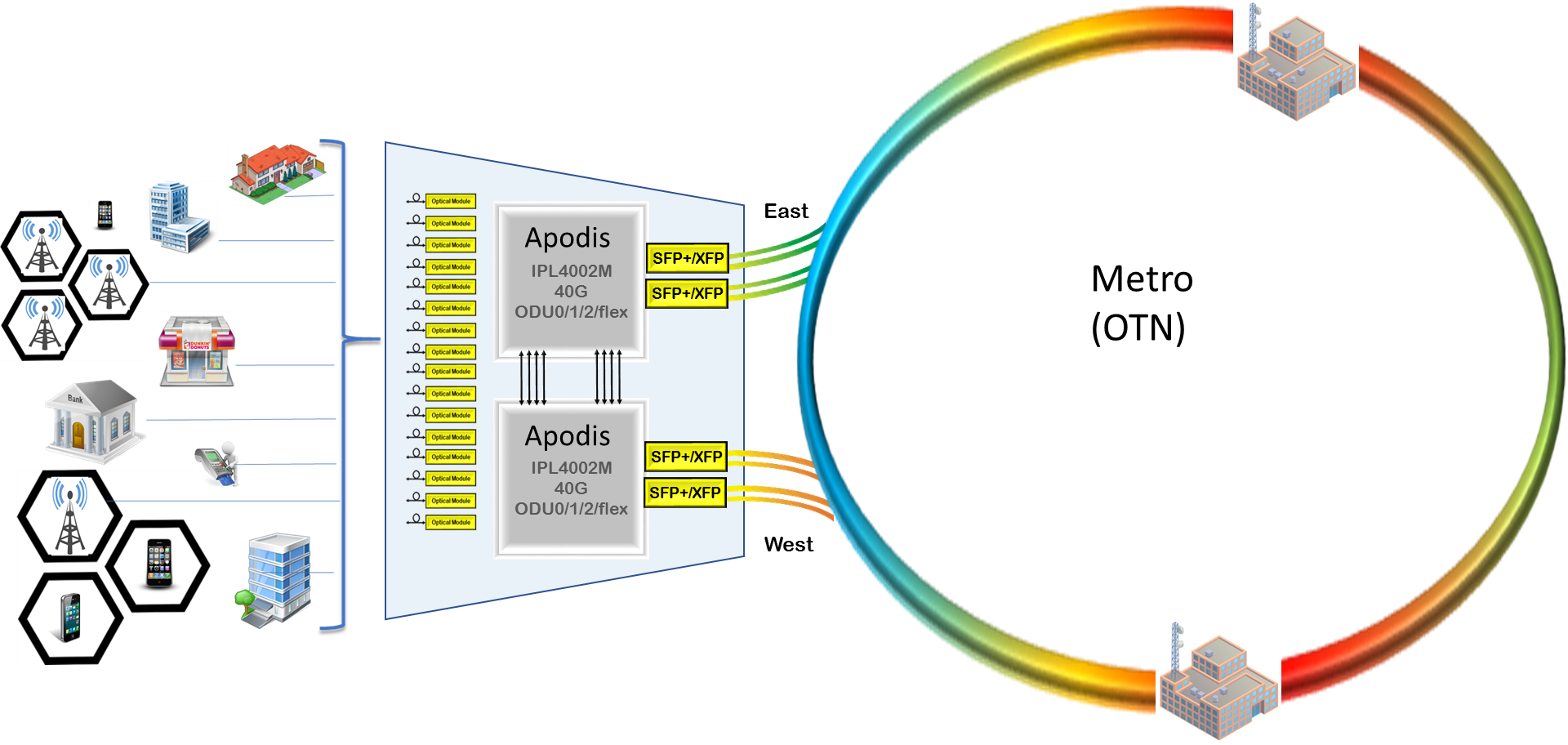

Apodis Processors support facility protection and equipment redundancy schemes



Orion IP Cores implement the novel ITU-T recommendation for the transport of CPRI signals over OTU2r bearers.

Orion Product Family of IP Cores for Mobile FrontHaul (MFH) Applications  Orion IP Cores address applications requiring the support of CPRI signals of different bitrates.


Orion TPS5101MP Block Diagram Six Client-Side ports supporting CPRI-3/4/5 signals to an OTU2r bearer

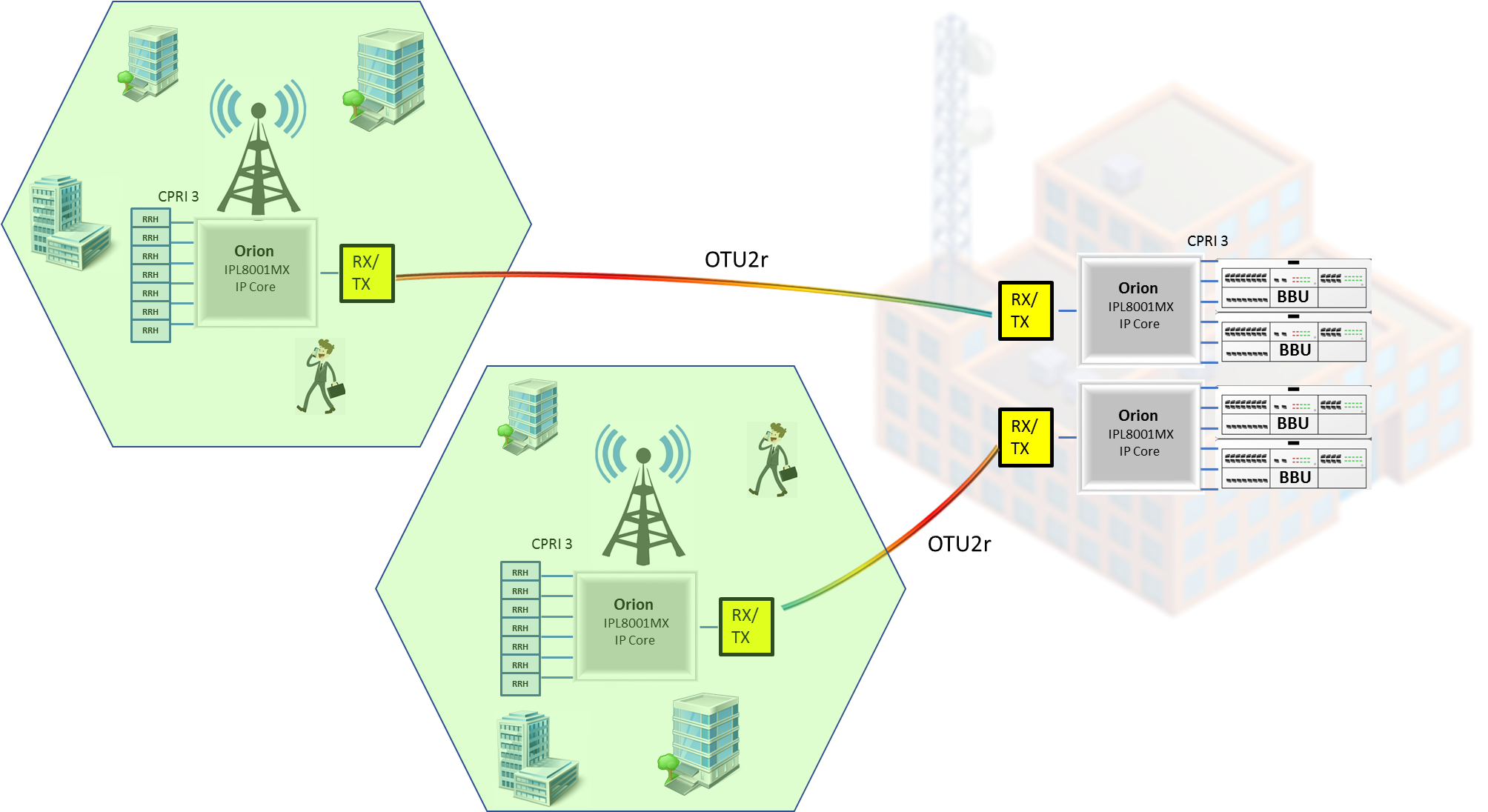

Typical application of an Orion TPS5101MP IP Core Multiplex groups of 6 CPRI-3 signals to OTU2r bearers saving on the optical infrastructure
